RT8072 - High Efficiency Synchronous Step-Down Converter

Richtek

The RT8072 by Richtek is a High Efficiency Synchronous Step-Down Converter. Below is the official datasheet preview.

📥 Download Datasheet

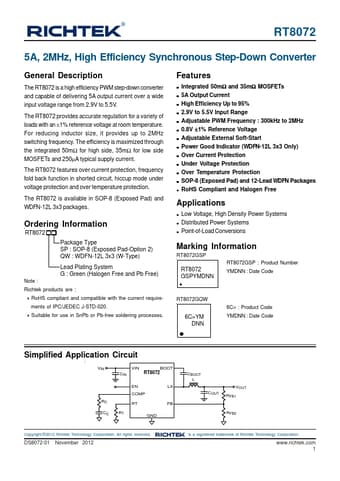

RT8072 High Efficiency Synchronous Step-Down Converter by Richtek - Datasheet Preview — Official preview page of the **RT8072** High Efficiency Synchronous Step-Down Converter datasheet (Richtek).

Datasheet Details

Part number	RT8072
Manufacturer	Richtek
File Size	243.88 KB
Description	High Efficiency Synchronous Step-Down Converter
Datasheet	RT8072-Richtek.pdf
Additional preview pages of the RT8072 datasheet.

RT8072 Product details

Description

The RT8072 is a high efficiency PWM step-down converter and capable of delivering 5A output current over a wide input voltage range from 2.9V to 5.5V.

Features

over current protection, frequency fold back function in shorted circuit, hiccup mode under voltage protection and over temperature protection. The RT8072 is available in SOP-8 (Exposed Pad) and WDFN-12L 3x3 packages. Ordering Information RT8072 Package Type SP : SOP-8 (Exposed Pad-Option 2) QW : WDFN-12L 3x3 (W-Type) Note : Lead Plating System G : Green (Halogen Free and Pb Free) Richtek products are : ` RoHS compliant and compatible with the current require- ments of IPC/JEDEC J-STD-020.
