RT8207 Complete DDRII/DDRIII Memory Power Supply Controller

RT8207 Description

RT8207 Complete DDRII/DDRIII Memory Power Supply Controller General .
The RT8207 provides a complete power supply for both DDRII/DDRIII memory systems.

RT8207 Features

* including thermal shutdown and is available in the WQFN-24L 4x4 package. z Features z PWM Controller ` Resistor Programmable Current Limit by Low-Side z RDS(ON) Sense ` Quick Load-Step Response within 100ns ` 1% VOUT Accuracy Over Line and Load ` Fixed 1.8V (DDRII), 1.5V (DDRIII) or Adjustable 0

RT8207 Applications

* z z z DDRII/DDRIII Memory Power Supplies Notebook Computers SSTL18, SSTL15 and HSTL Bus Termination Pin Configurations (TOP VIEW) VTT VLDOIN BOOT UGATE PHASE LGATE 24 23 22 21 20 19 Ordering Information RT8207 Package Type QW : WQFN-24L 4x4 (W-Type) Lead Plating System G : Green (Halogen Free and

📥 Download Datasheet

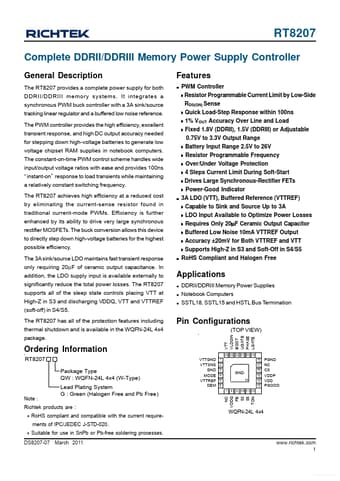

Preview of RT8207 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RT8207
Manufacturer
Richtek
File Size
389.38 KB
Datasheet
RT8207_Richtek.pdf
Description
Complete DDRII/DDRIII Memory Power Supply Controller
