RT8208F, RT8208E - Programmable Output Voltage Single Synchronous Buck Controller

Richtek

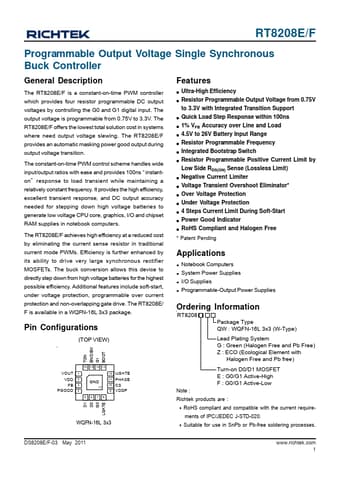

RT8208F Datasheet Preview — This datasheet PDF includes multiple part numbers: RT8208F, RT8208E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	RT8208F, RT8208E
Manufacturer	Richtek ↗
File Size	349.95 KB
Description	Programmable Output Voltage Single Synchronous Buck Controller
Datasheet	RT8208E-Richtek.pdf
Note	This datasheet PDF includes multiple part numbers: RT8208F, RT8208E. Please refer to the document for exact specifications by model.

RT8208F Product details

Description

The RT8208E/F is a constant-on-time PWM controller which provides four resistor programmable DC output voltages by controlling the G0 and G1 digital input.

Features

include soft-start, under voltage protection, programmable over current protection and non-overlapping gate drive. The RT8208E/ F is available in a WQFN-16L 3x3 package. Pin Configurations (TOP VIEW) TON EN/DEM G1 BOOT 16 15 14 13 VOUT VDD FB PGOOD 1 2 3 4 GND 17 12 UGATE 11 PHASE 10 CS 9 VDDP 5 678 D1 D0 G0 LGATE WQFN-16L 3x3 Features z Ultra-High Efficiency z Resistor Programmable Output Voltage from 0.75V to 3.3V with Integrated Transition Support z Quick Load Step Response within 1.
