RT8249D

Dual-Channel Synchronous DC/DC Step-Down Controller

RT8249D Features

* include on-board power-up sequencing, a power-good output, internal soft-start, and soft-discharge output that prevents negative voltage during shutdown. A constant current ripple PWM control scheme operates without sense resistors and provides 100ns response to load transient. For maximizing power

RT8249D General Description

The RT8249D is a dual-channel step-down, controller generating supply voltages for battery-powered systems. It includes two Pulse-Width Modulation (PWM) controllers adjustable from 2V to 5.5V, and two fixed 5V/3.3V linear regulators. Each linear regulator provides up to 100mA output current and 3.3V.

RT8249D Datasheet (250.58 KB)

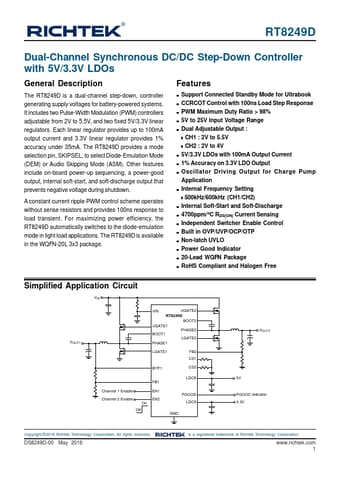

Preview of RT8249D PDF

Datasheet Details

Part number:

RT8249D

Manufacturer:

Richtek

File Size:

250.58 KB

Description:

Dual-channel synchronous dc/dc step-down controller.
