RT8286

500kHz Synchronous Step-Down Converter

Richtek

RT8286 Features

* z z 2A Output Current Internal Soft-Start z 150mΩ/60mΩ Internal Power MOSFET Switch z Internal Compensation Minimizes External Parts Count z Fixed 500kHz Frequency z Thermal Shutdown Protection z Cycle-by-Cycle Over Current Protection z Wide 4.5V to 21V Operating Input Range z Adjustable Output fr

RT8286 General Description

The RT8286 is a synchronous step-down regulator with integrated power MOSFETs. It achieves 2A of continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition pro.

RT8286 Datasheet (352.60 KB)

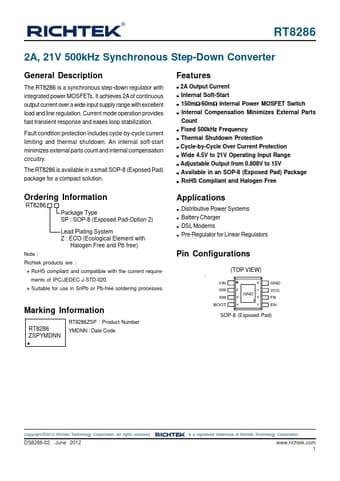

RT8286 Datasheet Preview — Preview of RT8286 PDF

Datasheet Details

Part number:

RT8286

Manufacturer:

Richtek

File Size:

352.60 KB

Description:

500khz synchronous step-down converter.
