RT8289 - 500kHz Step-Down Converter

Product Overview

Richtek

📥 Download Datasheet

RT8289 500kHz Step-Down Converter by Richtek - Datasheet Preview — Datasheet preview – RT8289

Datasheet Details

Part number	RT8289
Manufacturer	Richtek
File Size	288.00 KB
Description	500kHz Step-Down Converter
Datasheet	RT8289 Datasheet

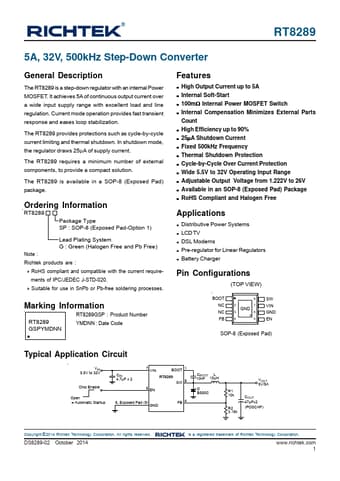

Additional preview pages of the RT8289 datasheet.

Product details

Description

The RT8289 is a step-down regulator with an internal Power MOSFET.

Features

High Output Current up to 5A.
Internal Soft-Start.
100mΩ Internal Power MOSFET Switch.
Internal Compensation Minimizes External Parts Count.
High Efficiency up to 90%.
25μA Shutdown Current.
Fixed 500kHz Frequency.
Thermal Shutdown Protection.
Cycle-by-Cycle Over Current Protection.
Wide 5.5V to 32V Operating Input Range.
Adjustable Output Voltage from 1.222V to 26V.
Available in an SOP-8 (Exposed Pad) Package.
RoHS Compliant and.
