RT8294 Datasheet, Converter, Richtek

RT8294 Features

  • Converter
  • ±1.5% High Accuracy Feedback Voltage
  • Input Voltage Range : 4.5V to 23V
  • 2A Output Current
  • Integrated N-MOSFETs
  • Current Mode Control

PDF File Details

Part number:

RT8294

Manufacturer:

Richtek

File Size:

355.38kb

Download:

📄 Datasheet

Description:

340khz synchronous step-down converter. The RT8294 is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 2A output current from a 4.5

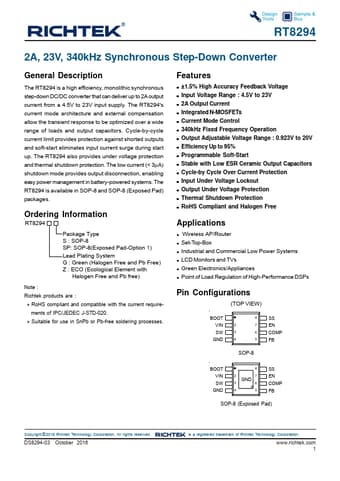

Datasheet Preview: RT8294 📥 Download PDF (355.38kb)
Page 2 of RT8294 Page 3 of RT8294

RT8294 Application

  • Applications
  • Wireless AP/Router
  • Set-Top-Box
  • Industrial and Commercial Low Power Systems
  • LCD Monitors and TVs
