RT9069 - 36V 200mA Low Dropout Voltage Linear Regulator

Richtek

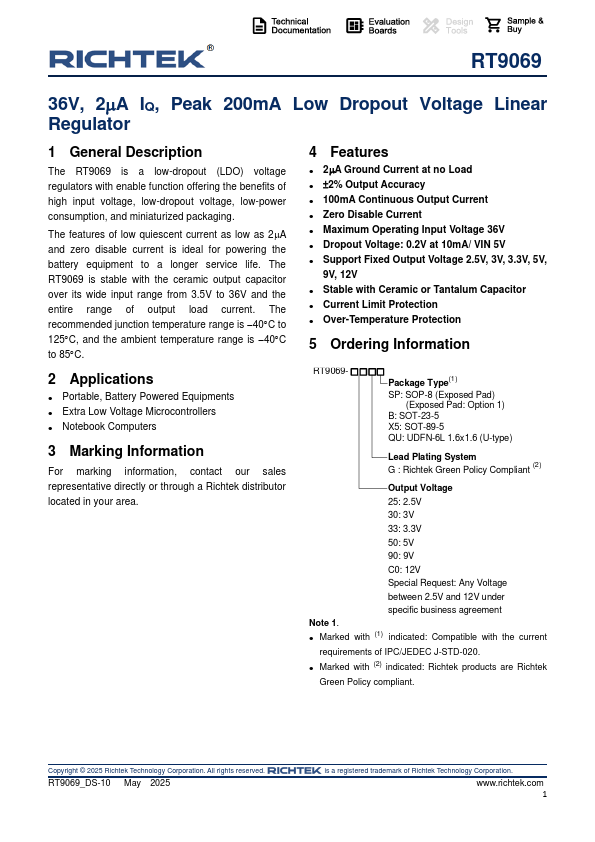

RT9069 Datasheet Preview — Preview of RT9069 PDF

Datasheet Details

Part number	RT9069
Manufacturer	Richtek ↗
File Size	849.31 KB
Description	36V 200mA Low Dropout Voltage Linear Regulator
Datasheet	RT9069-Richtek.pdf

RT9069 Product details

Description

The RT9069 is a low-dropout (LDO) voltage regulators with enable function offering the benefits of high input voltage, low-dropout voltage, low-power consumption, and miniaturized packaging.

Features

of low quiescent current as low as 2A and zero disable current is ideal for powering the battery equipment to a longer service life. The RT9069 is stable with the ceramic output capacitor over its wide input range from 3.5V to 36V and the entire range of output load current. The recommended junction temperature range is.
40C to 125C, and the ambient temperature range is.
40C to 85C. 2.
