RT9078 Datasheet - Richtek

300mA Low-Dropout Linear Regulator

RT9078 Features

* Input Voltage Range: 1.2V to 5.5V

* 2A Ground Current (IQ) at no Load

* PSRR = 75dB at 1kHz

* Adjustable Output Voltage Range:

* 0.8V to 5V (TSOT-23-5 Package with SNS Pin Only)

* 2% Output Accuracy

* Low (0.1A) Shutdown Current

* Dropout Voltage: 0.15V at 300mA

RT9078 General Description

The RT9078 is a low-dropout (LDO) voltage regulator with an enable f unction that operates f rom a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The device f eatures a 2A low quiescent current and 0.5A shutdown current, making it ideal f or batterypowere.

RT9078 Datasheet (1.66 MB)

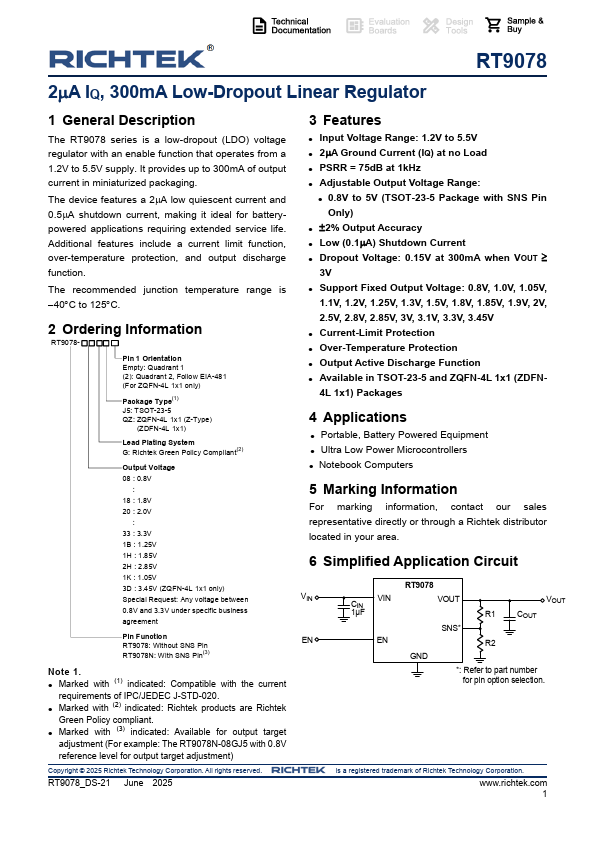

RT9078 Datasheet Preview — Preview of RT9078 PDF

Datasheet Details

Part number:

RT9078

Manufacturer:

Richtek

File Size:

1.66 MB

Description:

300ma low-dropout linear regulator.
