TFBR5 Low Profile Power Resistors

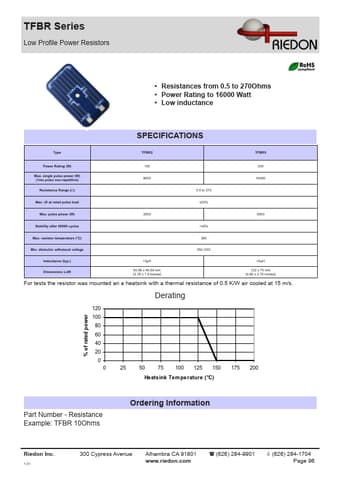

TFBR Series Low Profile Power Resistors Resistances from 0.5 to 270Ohms Power Rating to 16000 Watt Low inductance SPECIFICATIONS Type TFBR2 TFBR5 Power Rating (W) Max. single pulse power (W) (1ms pulse non-repetitive) Resistance Range (W) 100 8000 0.5 to 270 300 16000 Max ∆R at rated pulse load ±20% Max. pulse power (W) 2000 5000 Stability after 50000 cycles <±5% Max. resistor temperature (°C) 365 Min. dielectric withstand voltage www.DataSheet.n.

TFBR_RiedonPowertron.pdf

TFBR5 Datasheet Preview — This datasheet PDF includes multiple part numbers: TFBR5, TFBR. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TFBR5, TFBR

Manufacturer:

Riedon Powertron

File Size:

370.07 KB

Description:

Low profile power resistors.

Note:

This datasheet PDF includes multiple part numbers: TFBR5, TFBR.
Please refer to the document for exact specifications by model.
