2SA1037

General Purpose Transistor

2SA1037 Features

* 1) Excellent hFE linearity. 2) Complements the 2SC2412K / 2SC4081 / 2SC4617 / 2SC5658 / 2SC1740S. !External dimensions (Units : mm) 2SA1037AK (1) 2SA1576A (1) 0.95 0.95 1.9 2.9 0.65 0.65 0.8 0.7 0.4 (3) 0.3 (2) (3) 1.25 1.6 2.8 0.15 0.15 2.1 0.2 (2) 0.8 1.1 !Structure Epitaxial planar

2SA1037 Datasheet (76.38 KB)

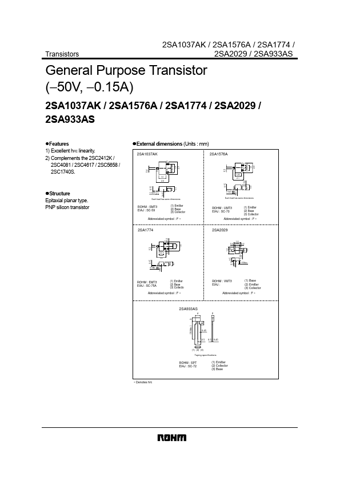

Preview of 2SA1037 PDF

Datasheet Details

Part number:

2SA1037

Manufacturer:

ROHM ↗

File Size:

76.38 KB

Description:

General purpose transistor.
Transistors 2SA1037AK / 2SA1576A / 2SA1774 / 2SA2029 / 2SA933AS General Purpose Transistor (

*50V,

*0.15A) 2SA1037AK / 2SA1576A / 2SA.
