B1237 - 2SB1237

B1237 Description

Transistors www.DataSheet4U.com Medium Power Transistor ( *32V, *1A) 2SB1132 / 2SA1515S / 2SB1237 F.

B1237 Features

* 1) Low VCE(sat). VCE(sat) =
* 0.2V (Typ. ) (IC / IB =
* 500mA /
* 50mA) 2) Compliments 2SD1664 / 2SD1858. FStructure Epitaxial planar type PNP silicon transistor FExternal dimensions (Units: mm) (96-120-B12) 207 Transistors www. DataSheet4U. com 2SB1132 / 2SA1515S / 2SB1237 FAbsol

📥 Download Datasheet

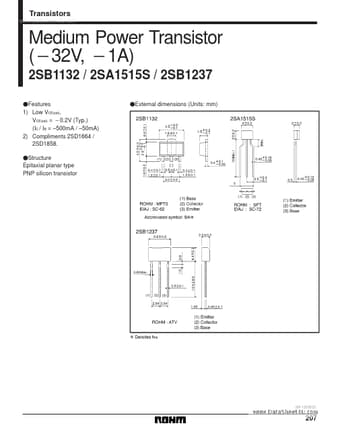

Preview of B1237 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B1237
Manufacturer
ROHM ↗
File Size
152.62 KB
Datasheet
B1237_Rohm.pdf
Description
2SB1237
