BA17805T - Standard 78 series/ 3-pin regulator

BA178!!T / FP series Regulator ICs Standard 78 series, 3-pin regulator BA178!!T / FP series The BA178!!T and BA178!!FP series are 3pin fixed positive output voltage regulators. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage. There are 11 fixed output voltages, as follows : 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, and 24V. The maximum current capacity is 1A for each of the above voltages. "Application Constant voltage power supply "Feat.

BA17805T Features

* 1) Built-in overcurrent protection circuit and thermal shutdown circuit. 2) Excellent ripple regulation. 3) Available in TO220FP and TO252-3 packages, to meet wide range of applications. 4) Compatible with other manufacturers' regulators. 5) Richly diverse lineup (5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V,

BA17805T_Rohm.pdf

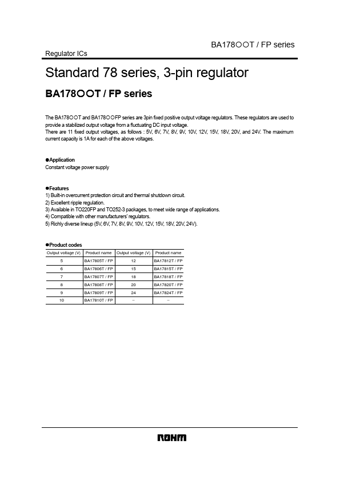

BA17805T Datasheet Preview — Preview of BA17805T PDF

Datasheet Details

Part number:

BA17805T

Manufacturer:

ROHM ↗

File Size:

122.40 KB

Description:

Standard 78 series/ 3-pin regulator.
