BA178M10FP - Standard 78M series/ 3-pin regulator

BA178M!!T / BA178M!!FP series Regulator ICs Standard 78M series, 3-pin regulator BA178M!!T / BA178M!!FP series The BA178M!!T and BA178M!!FP series are 3-pin, fixed positive output voltage regulators. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage. There are 11 fixed output voltages, as follows : 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, and 24V. The maximum current capacity is 0.5A for each of the above voltages. "Application Constant vo.

BA178M10FP Features

* 1) Built-in overcurrent protection circuit and thermal shutdown circuit. 2) Excellent ripple regulation. 3) Available in TO-220FP and TO252-3 packages, to meet wide range of applications. 4) Compatible with other manufacturers' regulators. 5) Richly diverse lineup. (5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V

BA178M10FP_Rohm.pdf

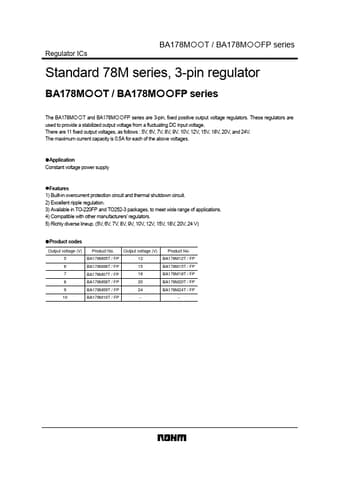

BA178M10FP Datasheet Preview — Preview of BA178M10FP PDF

Datasheet Details

Part number:

BA178M10FP

Manufacturer:

ROHM ↗

File Size:

123.11 KB

Description:

Standard 78m series/ 3-pin regulator.
