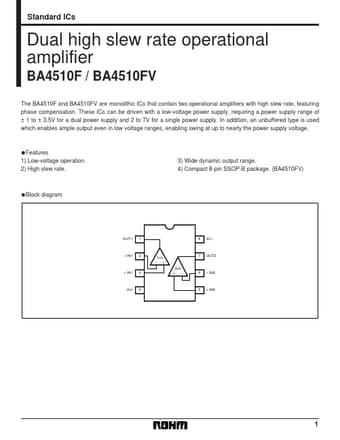

BA4510
Features
- 1) Low-voltage operation. 2) High slew rate.
3) Wide dynamic output range. 4) pact 8-pin SSOP-B package. (BA4510FV)
- Block diagram
OUT1
- IN1
1ch
- +
OUT2
+ IN1
+
2ch
- 6
- IN2
+ IN2
Standard ICs
BA4510F / BA4510FV
- Internal circuit configuration
VCC R1 X2 Q7 Q8 Q9
- IN + IN
Q1
Q2
A R5 X3 R2 VEE R3 R4
- Absolute maximum ratings (Ta = 25°C)
Parameter Power supply voltage Power dissipation Differential input voltage mon-mode input voltage Operating temperature Storage temperature BA4510F BA4510FV Symbol VCC Pd VID VI Topr Tstg Limits ±5 550∗1 (SOP) 350∗2 (SSOP) ± VCC 0 ~ VCC
- 20 ~ + 75
- 40 ~ + 125 Unit V m W V V °C °C
∗1 If used at temperatures higher than 25°C, reduce power by 5.5m W for each 1°C above Ta = 25°C. ∗2 If used at temperatures higher than 25°C, reduce power by 3.5m W for each 1°C above Ta = 25°C.
The value is 300m W when the IC is used alone. This value is the value measured when mounted on a glass epoxy...
