BA5152F

1.5V / 15mW dual power amplifier

Rohm

BA5152F Features

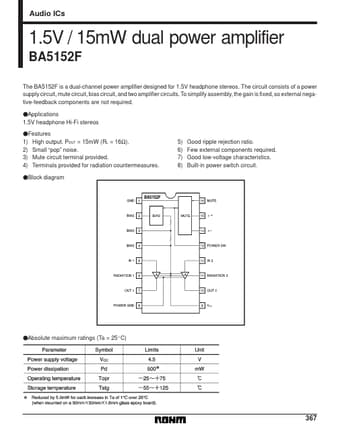

* 1) High output. POUT = 15mW (RL = 16Ω). 2) Small “pop” noise. 3) Mute circuit terminal provided. 4) Terminals provided for radiation countermeasures. FBlock diagram 5) 6) 7) 8) Good ripple rejection ratio. Few external components required. Good low-voltage characteristics. Built-in power switch ci

BA5152F General Description

(1) Power supply block The BA5152F has an internal power switch, so the VCC terminal (pin 9) connects directly to the power source. Pin 13 is the power switch, and if it is left open, no bias current flows in the circuit and the IC will not operate. (2) Mute circuit block When pin 13 is connected t.

BA5152F Datasheet (110.39 KB)

BA5152F Datasheet Preview — Preview of BA5152F PDF

Datasheet Details

Part number:

BA5152F

Manufacturer:

ROHM ↗

File Size:

110.39 KB

Description:

1.5v / 15mw dual power amplifier.
Audio ICs 1.5V / 15mW dual power amplifier BA5152F The BA5152F is a dual-channel power amplifier designed for 1.5V headphone stereos. The circuit con.
