BAJ0CC0FP-E2 2A/1A Fixed Output LDO Regulators

BAJ0CC0FP-E2 Description

Datasheet 2A/1A Fixed Output LDO Regulators BAxxDD0T Series BAxxCC0T Series BAxxCC0FP Series 2A/1A Fixed Output LDO Regulators With Shutdown Swicth B.
Standard Fixed Output LDO Regulators are low-saturation regulators, available for output s up to 2A / 1A.

BAJ0CC0FP-E2 Features

* ±1% highly accurate output voltage (BAxxDD0xx)
* Low saturation with PNP output
* Built-in over-current protection circuit that prevents the destruction of the IC due to output short circuits
* Built-in thermal shutdown circuit for protecting the IC from damage due

BAJ0CC0FP-E2 Applications

* Used in DSP power supplies for DVD and CD players, FPDs, televisions, personal computers or any other consumer device
* Lineup matrix
* 1A output BAxxCC0xx Series TO220FP-3 TO220FP-5 Part Number Output voltage (V) 3.0 3.3 5.0 6.0 7.0 8.0 9.0 10.0 12.0 15.0 Package BAxxCC0WT ○ ○ ○ － ○ ○

📥 Download Datasheet

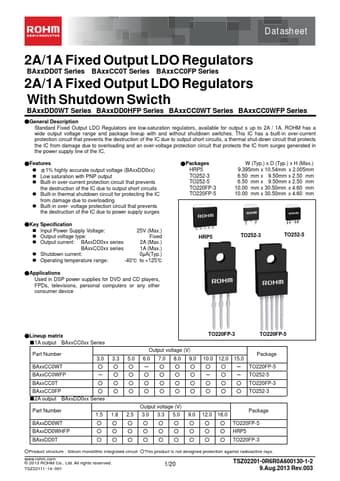

Preview of BAJ0CC0FP-E2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAJ0CC0FP-E2
Manufacturer
ROHM ↗
File Size
499.67 KB
Datasheet
BAJ0CC0FP-E2-Rohm.pdf
Description
2A/1A Fixed Output LDO Regulators
