BD88410GUL, BD88400GUL - Coupling Capacitorless Headphone Amplifiers

BD88410GUL Description

Headphone Amplifiers Coupling Capacitorless Headphone Amplifiers BD88400GUL,BD88410GUL,BD88415GUL,BD88420GUL No.11102EAT04 *.
BD88xxxGUL is output coupling capacitorless headphone amplifier.

BD88410GUL Features

* 1) 2.4V to 5.5V Single-Supply Operation 2) No Bulky DC-Blocking Capacitors Required 3) No Degradation of Low-Frequency Response Due to Output Capacitors 4) Ground-Referenced Outputs 5) Gain setting BD88400GUL: Variable gain with external resistors BD88410GUL: -1.0V/V BD88415GUL: -1.5V/V BD88420GUL:

BD88410GUL Applications

* Mobile Phones, Smart Phones, PDAs, Portable Audio Players, PCs, TVs, Digital Cameras, Digital Video Cameras, Electronic Dictionaries, Voice Recorders, Bluetooth Head-sets, etc
* Line up Type BD88400GUL BD88410GUL BD88415GUL Supply Supply Voltage Current [V] [mA] Gain [V/V] Variable gain with

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD88410GUL, BD88400GUL. Please refer to the document for exact specifications by model.

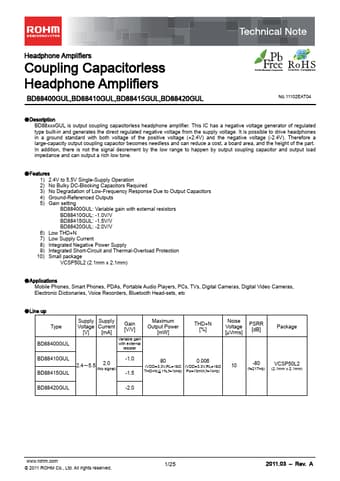

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD88410GUL, BD88400GUL
Manufacturer
ROHM ↗
File Size
566.95 KB
Datasheet
BD88400GUL-Rohm.pdf
Description
Coupling Capacitorless Headphone Amplifiers
Note
This datasheet PDF includes multiple part numbers: BD88410GUL, BD88400GUL.
Please refer to the document for exact specifications by model.
