BP5221X DC / DC converter

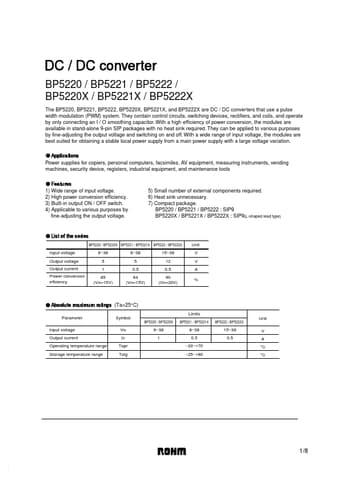

DC / DC converter BP5220 / BP5221 / BP5222 / BP5220X / BP5221X / BP5222X The BP5220, BP5221, BP5222, BP5220X, BP5221X, and BP5222X are DC / DC converters that use a pulse width modulation (PWM) system. They contain control circuits, switching devices, rectifiers, and coils, and operate by only connecting an I / O smoothing capacitor. With a high efficiency of power conversion, the modules are available in stand-alone 9-pin SIP packages with no heat sink required. They can be applied to various p.

BP5221X Features

* 1) Wide range of input voltage. 2) High power conversion efficiency. 3) Built-in output ON / OFF switch. 4) Applicable to various purposes by fine-adjusting the output voltage. 5) Small number of external components required. 6) Heat sink unnecessary. 7) Compact package. BP5220 / BP5221 / BP5222 :
