BP5842 Datasheet - Rohm

BP5842 - High-power LED Drivers

High-power LED Drivers for Ιllumination AC100V input, constant current BP5842 Absolute Maximum Ratings Parameter Input voltage Output voltage Withstand voltage Maximum surface temperature Operating temperature range Storage temperature range Symbol Vi Vo BV Tcmax Topr Tstg Limits 170 4 1.8 105 20 to +80 25 to +85 Unit V Vpk kV °C °C °C DC 24.5±0.5 Dimensions (Unit : mm) 32.5±0.4 15.1Max.

1s (between primary and secondary) Ambient temperature + module self-heating Tcmax Refe

BP5842 Features

* such as extra margin, anti-flammability, and fail-safe measures when designing in order to prevent possible accidents that may result in bodily harm or fire caused by component failure. ROHM cannot be held responsible for any damages arising from the use of the products under conditions out of the

BP5842_Rohm.pdf

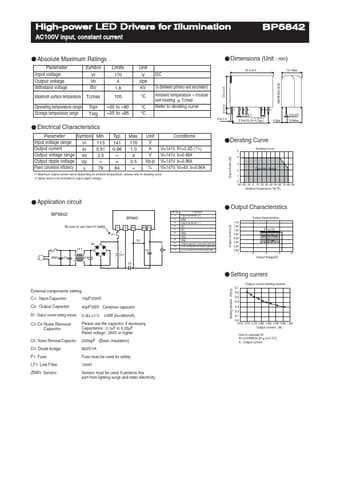

Preview of BP5842 PDF
BP5842 Datasheet Preview Page 2 BP5842 Datasheet Preview Page 3

Datasheet Details

Part number:

BP5842

Manufacturer:

ROHM ↗

File Size:

479.23 KB

Description:

High-power led drivers.
