BR93L66 - Microwire BUS 4Kbit(256 x 16bit) EEPROM

Product Overview

Rohm

📥 Download Datasheet

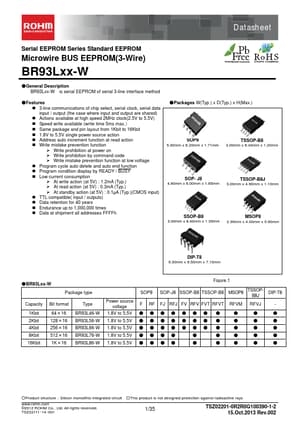

BR93L66 Microwire BUS 4Kbit(256 x 16bit) EEPROM by Rohm - Datasheet Preview — Datasheet preview – BR93L66

Datasheet Details

Part number	BR93L66
Manufacturer	ROHM
File Size	0.99 MB
Description	Microwire BUS 4Kbit(256 x 16bit) EEPROM
Datasheet	BR93L66 Datasheet
Note	This datasheet PDF includes multiple part numbers: BR93L66, BR93L66-W. Please refer to the document for exact specifications by model.
Additional preview pages of the BR93L66 datasheet.

Product details

Description

BR93Lxx-W is serial EEPROM of serial 3-line interface method

Features

3-line communications of chip select, serial clock, serial data input / output (the case where input and output are shared).
Actions available at high speed 2MHz clock(2.5V to 5.5V).
Speed write available (write time 5ms max. ）.
Same package and pin layout from 1Kbit to 16Kbit.
1.8V to 5.5V single power source action.
Address auto increment function at read action.
Write mistake prevention function ¾ Write prohibition at power on ¾.
