BU2090F - serial-IN/parallel-OUT driver

BU2090F Description

Datasheet Serial-in / Parallel-out Driver Series 2-input Serial- in / Parallel- out Drivers BU2090F BU2090FS .
BU2090F/BU2090FS are an open drain output driver.

BU2090F Features

* LED can be driven directly
* 12 bit parallel output

BU2090F Applications

* Drive of LED
* Drive of Solenoid
* Drive of Relay SOP16 BU2090F SSOP-A16 BU2090FS Pin Configurations (Top View) VSS 1 DATA 2 CLOCK 3 Q0 4 Q1 5 Q2 6 Q3 7 Q4 8 16 VDD 15 Q11 14 Q10 13 Q9 12 Q8 11 Q7 10 Q6 9 Q5 Block Diagrams CLOCK DATA

📥 Download Datasheet

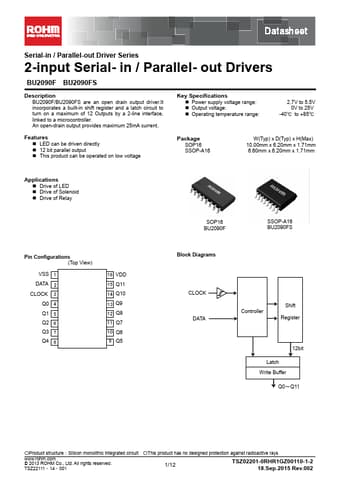

Preview of BU2090F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU2090F
Manufacturer
ROHM ↗
File Size
742.27 KB
Datasheet
BU2090F_Rohm.pdf
Description
serial-IN/parallel-OUT driver
