C3271F - 2SC3271F

C3271F Description

2SC4061K / 2SC3415S / 2SC4015 / 2SC3271F Transistors Chroma Amplifier Transistor (300V, 0.1A) 2SC4061K / 2SC3415S / 2SC4015 / 2SC3271F !.

C3271F Features

* 1) High breakdown voltage. (BVCEO=300V) 2) Low collector output capacitance. (Typ. 3pF at VCB=30V) 3) Ideal for chroma circuit. !External dimensions (Units: mm) (1) 2SC4061K 0.4 (3) 1.6 2.8 0.95 0.95 (2) !Absolute maximum ratings (Ta=25°C) Parameter Collector-base voltage Collector-emitter volt

📥 Download Datasheet

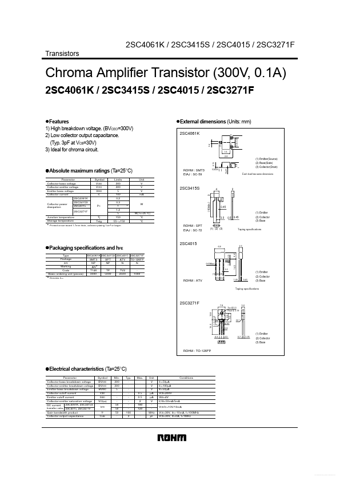

Preview of C3271F PDF

Datasheet Details

Part number
C3271F
Manufacturer
ROHM ↗
File Size
76.92 KB
Datasheet
C3271F-Rohm.pdf
Description
2SC3271F
