D2143 - 2SD2143

D2143 Description

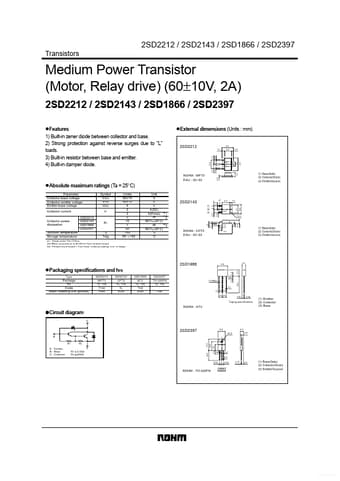

2SD2212 / 2SD2143 / 2SD1866 / 2SD2397 Transistors Medium Power Transistor (Motor, Relay drive) (60±10V, 2A) 2SD2212 / 2SD2143 / 2SD1866 / 2SD2397 !Fe.

D2143 Features

* 1) Built-in zener diode between collector and base. 2) Strong protection against reverse surges due to "L" loads. 3) Built-in resistor between base and emitter. 4) Built-in damper diode. !External dimensions (Units : mm) 2SD2212 1.5 0.4 4.0 1.0 2.5 0.5 (1) 3.0 0.5 (3) 1.5 0.4 4.5 1.6 (2)

📥 Download Datasheet

Preview of D2143 PDF
datasheet Preview Page 2

Datasheet Details

Part number
D2143
Manufacturer
ROHM ↗
File Size
87.13 KB
Datasheet
D2143-Rohm.pdf
Description
2SD2143
