* 1) Built-In Biasing Resistors, R1 = R2 = 22kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the
DTA124EUB
1.75 MB
Digital transistors.

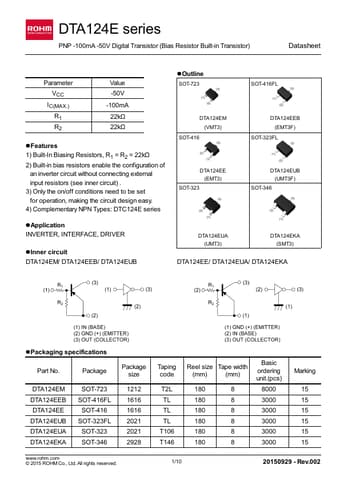

DTA124E series
PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
Parameter VCC
IC(MAX.) R1 R2
Value -50V -100mA 22.
