DTA143EKA Datasheet - Rohm

DTA143EKA, Digital transistors

DTA143E series PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value -50V -100mA 4.7k.

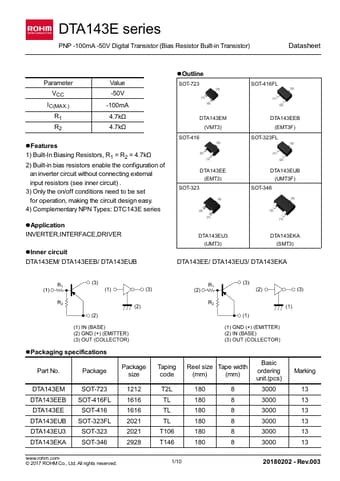

datasheet Preview Page 1 from Datasheet4u.com

DTA143EKA_Rohm.pdf

DTA143EKA Datasheet Preview — Preview of DTA143EKA PDF

Datasheet Details

Part number:

DTA143EKA

Manufacturer:

ROHM ↗

File Size:

1.69 MB

Description:

Digital transistors

Features

* 1) Built-In Biasing Resistors, R1 = R2 = 4.7kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary
