DTA143ZSA - Digital transistors (built-in resistors)

Rohm

📥 Download Datasheet

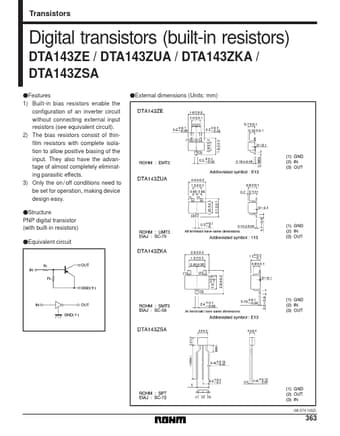

DTA143ZSA Datasheet Preview — Preview of DTA143ZSA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DTA143ZSA
Manufacturer: ROHM ↗
File Size: 69.36 KB
Datasheet: DTA143ZSA_Rohm.pdf
Description: Digital transistors (built-in resistors)

DTA143ZSA Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. FStructure PNP digital transistor (with built-in resistors) FEquivale.
