DTC114EKA - NPN 100mA 50V Digital Transistors

This page provides the datasheet information for the DTC114EKA, a member of the DTC114E NPN 100mA 50V Digital Transistors family.

Datasheet Summary

Features

  • 1) Built-In Biasing Resistors, R1 = R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary PNP Types: DTA114E series l.

📥 Download Datasheet

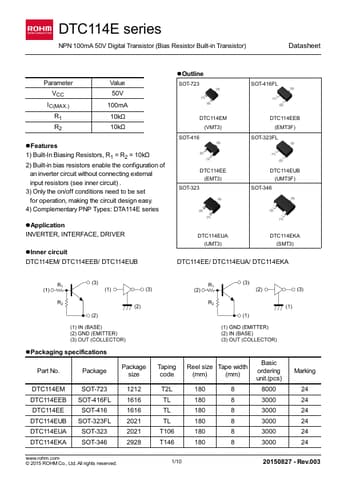

Datasheet preview – DTC114EKA
