EDZ4.7B, EDZ47B Zener diode

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com EDZ4.7B Diodes Zener diode EDZ4.7B zApplications Constant voltage control zExternal dimensions (Unit : mm) 0.8±0.05 0.12±0.05 z.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EDZ4.7B, EDZ47B. Please refer to the document for exact specifications by model.

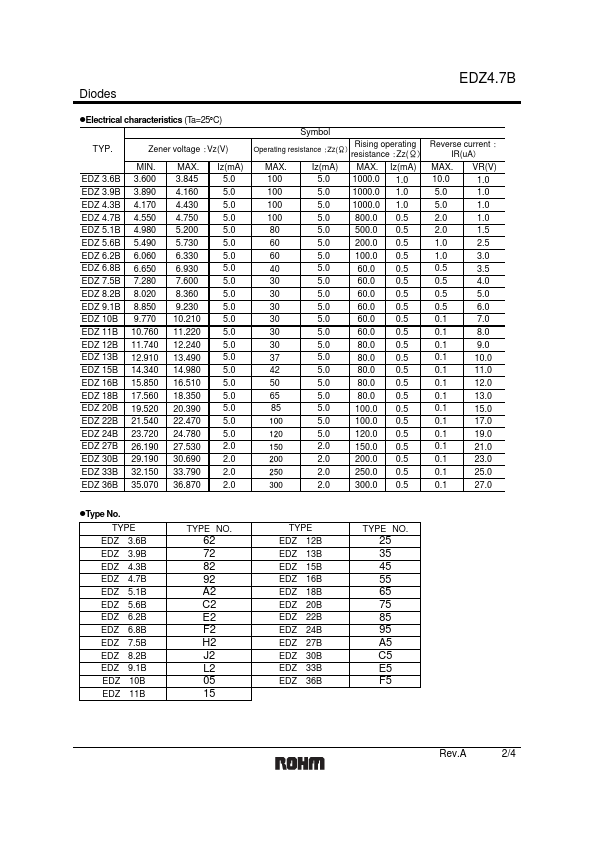

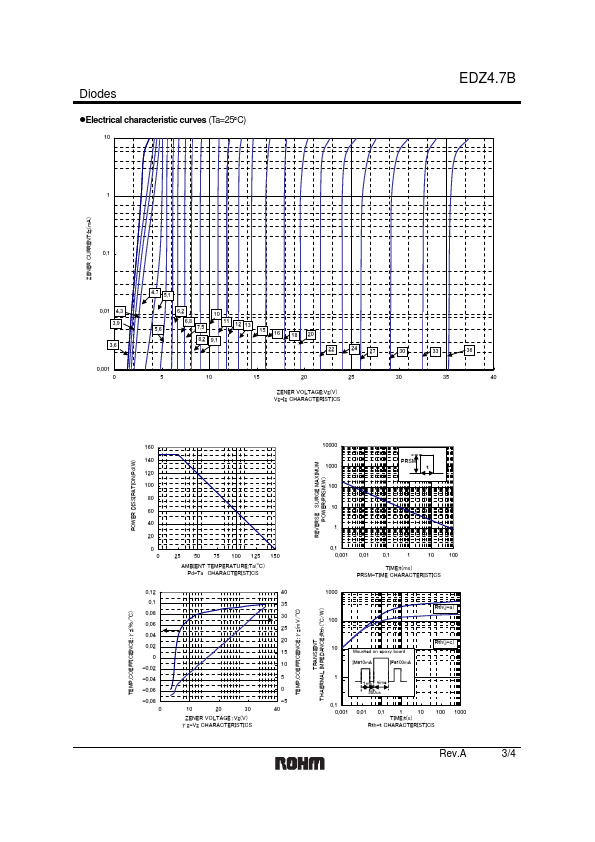

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
EDZ4.7B, EDZ47B
Manufacturer
ROHM ↗
File Size
176.63 KB
Datasheet
EDZ47B_Rohm.pdf
Description
Zener diode
Note
This datasheet PDF includes multiple part numbers: EDZ4.7B, EDZ47B.
Please refer to the document for exact specifications by model.

Features

* 1) 2-pin ultra mini-mold type for high-density mounting (EMD2). 2) High reliability. 3) Can be mounted automatically, using chip mounter. 0.3±0.05 1.2±0.05 1.6±0.1 EMD2 zStructure zConstruction Silicon epitaxial planar ROHM : EMD2 JEDEC :SOD-523 JEITA : SC-79 dot (year week factory) EX. EDZ3.6B
