IMX9, IMX9T110 - General Purpose Transistor

Rohm

Datasheet Details

Part number	IMX9, IMX9T110
Manufacturer	ROHM ↗
File Size	72.22 KB
Description	General Purpose Transistor
Datasheet	IMX9T110_Rohm.pdf
Note	This datasheet PDF includes multiple part numbers: IMX9, IMX9T110. Please refer to the document for exact specifications by model.

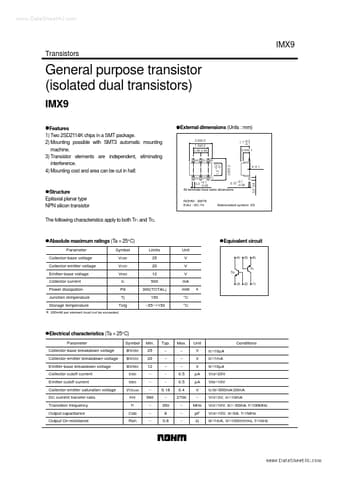

1) Two 2SD2114K chips in a SMT package. 2) Mounting possible with SMT3 automatic mounting machine. 3) Transistor elements are independent, eliminating interference. 4) Mounting cost and area can be cut in half. zExternal dimensions (Units : mm) 2.9±0.2 1.9±0.2 0.95 0.95 (4) (5) (6) 1.1 +0.2.
0.1 0.8±0.1 +0.2.
0.1 2.8±0.2 0~0.1 (3) zStructure Epitaxial planar type NPN silicon transistor The following characteristics apply to both Tr1 and Tr2. All terminals have same dimensio.
