KD2002-CF10A Datasheet PDF (Compact medium speed thick film thermal printhead)

KD2002-CF10A - Compact medium speed thick film thermal printhead

Features

1) Both ROHM’s advanced LSI technology and proprietary partial glaze are used to realize higher printing efficiency. With a high print speed of 100mm/s, this series is also suitable for thermal transfer printing. 2) Besides the fact that harness-type direct connectors at either end allow wring to be fitted as convenient, the thermal printheads can be applied directly to the substrate without a heat sink. Both these features give engineers greater freedom when designing the printer mechanism. 3).

Datasheet Details

Part number	KD2002-CF10A
Manufacturer	ROHM
File Size	59.10 KB
Description	Compact medium speed thick film thermal printhead
Datasheet	KD2002-CF10A Datasheet
Additional preview pages of the KD2002-CF10A datasheet.

📁 Similar Datasheet

KD20050 - LCD Module (STARTEK)

KD201 - HIC IGBT driver chip (PwrDriver)

KD2040-1B - LCD Module (STARTEK)

KD208A - Diode (Saransk)

KD209A - Diode (Saransk)

KD209B - Diode (Saransk)

KD209G - Diode (Saransk)

KD209V - Diode (Saransk)

KD20CK - DC Solid-State Relay (TELEDYNE)

KD20SF60 - TRIACs (SHINDENGEN)

Full PDF Text Transcription

Click to expand full text

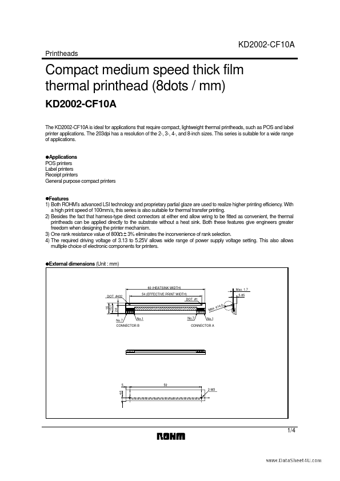

KD2002-CF10A Printheads Compact medium speed thick film thermal printhead (8dots / mm) KD2002-CF10A The KD2002-CF10A is ideal for applications that require compact, lightweight thermal printheads, such as POS and label printer applications. The 203dpi has a resolution of the 2-, 3-, 4-, and 8-inch sizes. This series is suitable for a wide range of applications. zApplications POS printers Label printers Receipt printers General purpose compact printers zFeatures 1) Both ROHM’s advanced LSI technology and proprietary partial glaze are used to realize higher printing efficiency. With a high print speed of 100mm/s, this series is also suitable for thermal transfer printing.
