LD-603, Flat displays

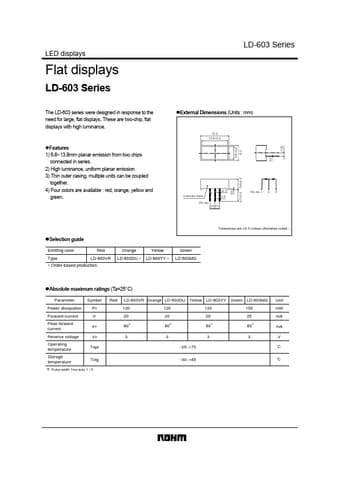

LD-603 Series LED displays Flat displays LD-603 Series The LD-603 series were designed in response to the need for large, flat displays.
These are two-chip, flat displays with high luminance.
!External Dimensions (Units : mm) 15.0 13.8±0.2 Cathode mark Pin No.1 2 3 (2.5) (2.5) 0.6 Tolerances are ±0.3 unless otherwise noted : !Selection guide Emitting color Type Red LD-603VR Orange LD-603DU ∗ Yellow LD-603YY ∗ Green LD-603MG ∗ Order-based production.
!Absolute maximum ratings (Ta=25°C) Pa
LD-603 Features
* 1) 6.8×13.8mm planar emission from two chips connected in series. 2) High luminance, uniform planar emission 3) Thin outer casing, multiple units can be coupled together. 4) Four colors are available : red, orange, yellow and green. 6.8±0.2 8.0 0.6 (0.7) 5.6±0.2 Pin No.1 2 0.3 3 (1.8) LD-6
