LM-2035 5 x 7 matrix displays

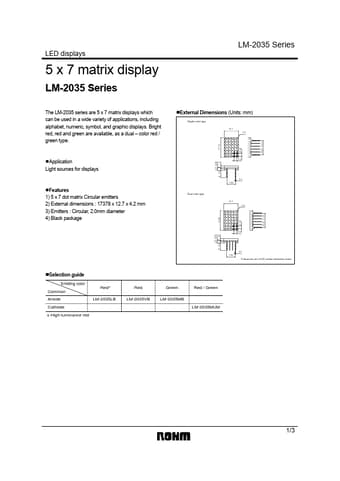

LM-2035 Series LED displays 5 x 7 matrix display LM-2035 Series The LM-2035 series are 5 x 7 matrix displays which can be used in a wide variety of applications, including alphabet, numeric, symbol, and graphic displays. Bright red, red and green are available, as a dual color red / green type. !External Dimensions (Units: mm) Single color type 12.7 2.0 8 0.5 !Application Light sources for displays 2.54 2.3 (0.8) 1.9 0.5 7.62 2.54 2.3 (0.8) 8 0.5 1.9 0.5 7.62 Tolerances ar.

LM-2035 Features

* 1) 5 x 7 dot matrix Circular emitters 2) External dimensions : 17378 x 12.7 x 4.2 mm 3) Emitters : Circular, 2.0mm diameter 4) Black package Dual color type 12.7 2.0 P2.54 5=12.7 17.78 2.54 1/3 LM-2035 Series LED displays !Pin assignments Pin No.1 Pin No.12 Pin No.1 Pin No.7 Pin No.12 Pin No.
