MCR03, MCR004 Datasheet - Rohm

MCR03 - (MCR Series) Thick Film Chip Resistors

MCR 0 0 4 QL P J 100 Part No. MCR (Micro chip resistors) Size (mm [inch]) 004(0402 [01005]) 006(0603 [0201]) 01(1005 [0402]) 03(1608 [0603]).

MCR03 Features

* 1)Full line up from ultra small size (01005) to 2512 with jumper type. 2)High reliability metal glazed thick film. 3)ROHM resistors have obtained ISO9001/ISO/TS16949 certification. Datasheet Part No. MCR004 MCR006 MCR01 MCR03 MCR10 MCR18 MCR25 MCR50 MCR100 Size (mm) (inch) 0402 01005 0603 0201 10

MCR004_Rohm.pdf

This datasheet PDF includes multiple part numbers: MCR03, MCR004. Please refer to the document for exact specifications by model.

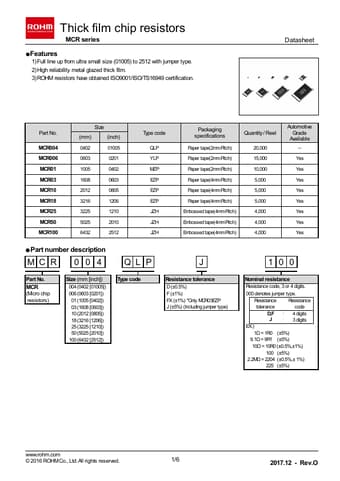

MCR03 Datasheet Preview Page 2 MCR03 Datasheet Preview Page 3

Datasheet Details

Part number:

MCR03, MCR004

Manufacturer:

ROHM ↗

File Size:

1.00 MB

Description:

(mcr series) thick film chip resistors.

Note:

This datasheet PDF includes multiple part numbers: MCR03, MCR004.
Please refer to the document for exact specifications by model.
