RB050LA-40 - Shottky barrier diode

Rohm

📥 Download Datasheet

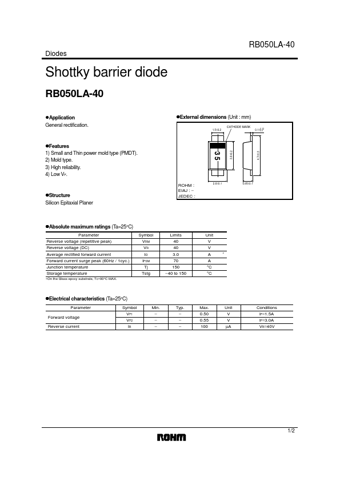

RB050LA-40 Datasheet Preview — Preview of RB050LA-40 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RB050LA-40
Manufacturer	ROHM ↗
File Size	31.60 KB
Description	Shottky barrier diode
Datasheet	RB050LA-40_Rohm.pdf

RB050LA-40 Product details

Features

1) Small and Thin power mold type (PMDT). 2) Mold type. 3) High reliability. 4) Low VF. ROHM : EIAJ :.
JEDEC : 3.8±0.2 2.6±0.1 0.95±0.1 !Structure Silicon Epitaxial Planer !Absolute maximum ratings (Ta=25°C) Parameter Reverse voltage (repetitive peak) Reverse voltage (DC) Average rectified forward current Forward current surge peak (60Hz / 1cyc. ) Junction temperature Storage temperature ∗On the Glass epoxy substrate, Tc=90°C MAX. Symbol VRM VR IO IFSM Tj Tstg Limits 40 40 3.0 70.
