RSB18V, Bi-Directional Zener Diodes

www.DataSheet4U.com RSB18V Diodes Bi-Directional Zener Diodes RSB18V zOutline RSB18V is a bi-directional zener diode having two zeners confronted in.

RSB18V_Rohm.pdf

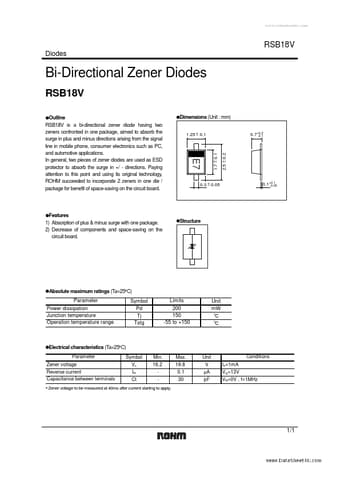

RSB18V Datasheet Preview — Preview of RSB18V PDF

Datasheet Details

Part number:

RSB18V

Manufacturer:

ROHM ↗

File Size:

102.64 KB

Description:

Bi-Directional Zener Diodes

Features

* 1) Absorption of plus & minus surge with one package. 2) Decrease of components and space-saving on the circuit board. zStructure zAbsolute maximum ratings (Ta=25°C) Parameter Power dissipation Junction temperature Operation temperature range Symbol Pd Tj Tstg Limits 200 150 -55 to +150 Unit m

Applications

* In general, two pieces of zener diodes are used as ESD protector to absorb the surge in +/ - directions. Paying attention to this point and using its original technology, ROHM succeeded to incorporate 2 zeners in one die / package for benefit of space-saving on the circuit board. zDimensions (Unit
