S2308 N-channel SiC power MOSFET

S2308 Description

S2308 N-channel SiC power MOSFET bare die VDSS RDS(on) (Typ.) ID 1200V 280mW 14A *1 Data Sheet l.

S2308 Features

* 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive lInner circuit (D) (G) (S) (G) Gate (D) Drain (S) Source

📥 Download Datasheet

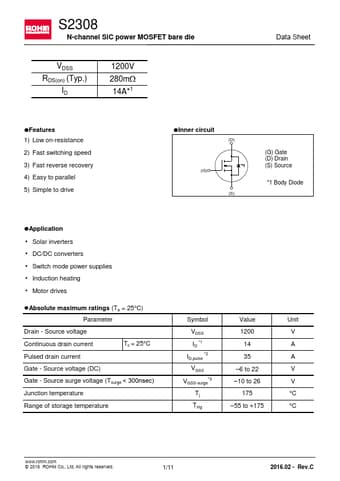

Preview of S2308 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2308
Manufacturer
ROHM ↗
File Size
587.38 KB
Datasheet
S2308-Rohm.pdf
Description
N-channel SiC power MOSFET
