SML-010 - Chip LEDs

Datasheet Summary

Features

1) Reflectors are used to achieve a high luminance. 2) Four colors: red, orange, yellow and green. 3) Rectangular and leadless (3 2 mm). 4) Can be mounted by automatic mounting. FSelection guide FAbsolute maximum ratings (Ta = 25_C) 27 LED lamps FElectrical and optical characteristics (Ta = 25_C) SML-010 Series FDirectional pattern FElectrical characteristic curves 1 (SML-010LT, SML-010JT) (bright red) 28 LED lamps SML-010 Series FElectrical characteristic curves 2 (SML-010VT) (red).

Rohm

📥 Download Datasheet

Datasheet Details

Part number	SML-010
Manufacturer	ROHM
File Size	207.68 KB
Description	Chip LEDs
Datasheet	SML-010 Datasheet
Additional preview pages of the SML-010 datasheet.

📁 Similar Datasheet

SML-011 - Chip LEDs (ETC)
SML-012 - Chip LEDs (ETC)
SML-0404SIUPGUSB - SMD RGB LEDs (Lumex)
sml-51 - Mini-molded chip LEDs (ETC)
SML-LX0603GW-TR - LED (Lumex)
SML-LX12061C-TR - LED (Lumex)
SML-LX1206IC-TR - LED (Lumex)
SML-LX15IC-TR - LED (Lumex)
SML-LX15SIC-TR - LED (Lumex)
SML-LX15SOC-TR - LED (Lumex)

Other Datasheets by Rohm

SML-020 - Two-color chip LEDs
SML-11 - Side-view type LED
SML-21 - Abundant color variations
SML-210 - Small/ chip LEDs
SML-210 - Standard Type Mini-molded chip LEDs
SML-210VTT86 - Standard Type Mini-molded chip LEDs
SML-210x - Standard Type Mini-molded chip LEDs
SML-211 - Chip LEDs

Full PDF Text Transcription

Click to expand full text

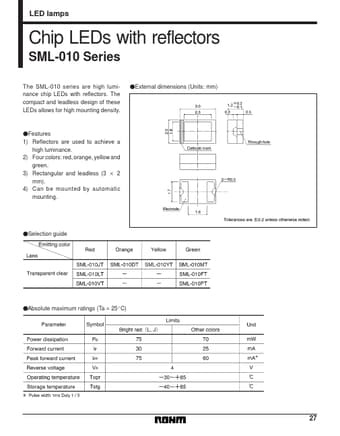

LED lamps Chip LEDs with reflectors SML-010 Series The SML-010 series are high luminance chip LEDs with reflectors. The compact and leadless design of these LEDs allows for high mounting density. FExternal dimensions (Units: mm) FFeatures 1) Reflectors are used to achieve a high luminance. 2) Four colors: red, orange, yellow and green. 3) Rectangular and leadless (3 2 mm). 4) Can be mounted by automatic mounting.
