DL-7146-101S Violet Laser Diode

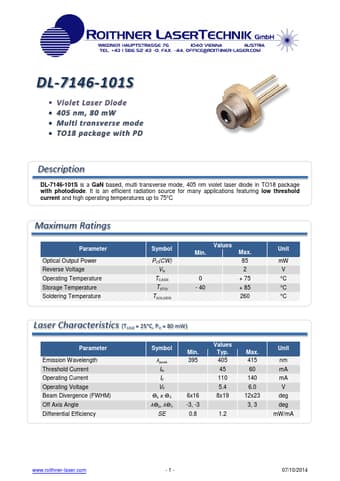

📥 Download Datasheet  Datasheet Preview Page 1

Description

DL-7146-101S * .
DL-7146-101S is a GaN based, multi transverse mode, 405 nm violet laser diode in TO18 package with photodiode.

📥 Download Datasheet

Preview of DL-7146-101S PDF
datasheet Preview Page 2

Applications

* featuring low threshold current and high operating temperatures up to 75°C Maximum Ratings Parameter Optical Output Power Reverse Voltage Operating Temperature Storage Temperature Soldering Temperature Symbol PO(CW) VR TCASE TSTG TSOLDER Min. 0 - 40 Values Max. 85 2 + 75 + 85 260 Unit mW V °C
