CW520-01 - Laser Diode Module

CW520-01 Description

CW520-01 v 1.0 19.11.2013 .
CW520-01 is a compact size fix collimated laser diode module with a typical emission wavelength of 515 nm, and an optical output power of.

CW520-01 Features

* automatic power control (APC) driving electronics for stable operation, and supports a wide input voltage range (3-5 VDC) Specifications Parameter Values Min. Typ. Max. Wavelength 505 515 525 Output power 1 Laser class 2 Output aperture Ø2 Beam divergence

📥 Download Datasheet

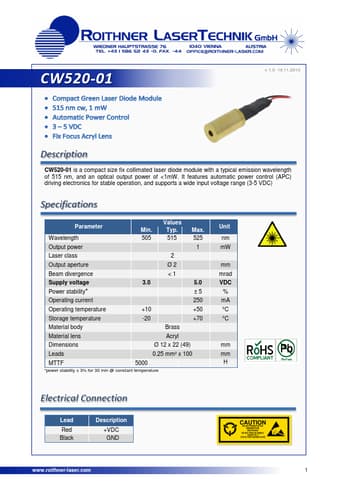

Preview of CW520-01 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CW520-01
Manufacturer
Roithner
File Size
456.37 KB
Datasheet
CW520-01-Roithner.pdf
Description
Laser Diode Module
