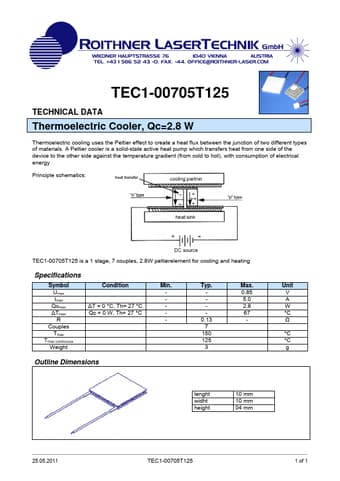

TEC1-00705T125
TECHNICAL DATA
Thermoelectric Cooler, Qc=2.8 W
Thermoelectric cooling uses the Peltier effect to create a heat flux between the junction of two different types of materials. A Peltier cooler is a solid-state active heat pump which transfers heat from one side of the device to the other side against the temperature gradient (from cold to hot), with consumption of electrical energy
Principle schematics:
TEC1-00705T125 is a 1 stage, 7 couples, 2.8W peltierelement for cooling and heating
Specifications
Symbol Umax Imax Qcmax ΔTmax R
Couples Tmax
Tmax continuous Weight
Condition
ΔT = 0 °C, Th= 27 °C Qc = 0 W, Th= 27 °C
Min. -
Typ. -
0.13 7
150 125
3
Max. 0.85 5.0 2.8 67
-
Outline Dimensions
lenght widht height
10 mm 10 mm 04 mm
Unit V A W °C Ω
°C °C g
25.05.
TEC1-00705T125 Datasheet
