P6KE22CA, P6KE6.8A - Transient Voltage Suppressors Diodes

Ruilon

📥 Download Datasheet

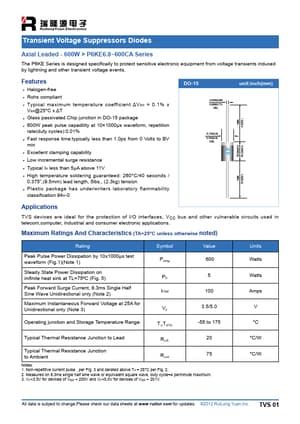

P6KE22CA Datasheet Preview — This datasheet PDF includes multiple part numbers: P6KE22CA, P6KE6.8A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: P6KE22CA, P6KE6.8A
Manufacturer: Ruilon
File Size: 517.68 KB
Datasheet: P6KE6.8A-Ruilon.pdf
Description: Transient Voltage Suppressors Diodes
Note: This datasheet PDF includes multiple part numbers: P6KE22CA, P6KE6.8A.
Please refer to the document for exact specifications by model.

P6KE22CA Product details

Features

Halogen-free.
Rohs compliant.
Typical maximum temperature coefficient ΔVBR = 0.1% x VBR@25°C x ΔT.
Glass passivated Chip junction in DO-15 package.
600W peak pulse capadility at 10×1000μs waveform, repetition rate(duty cycles):0.01%.
Fast response time:typically less than 1.0ps from 0 Volts to BV min.
Excellent clamping capability.
Low incremental surge resistance.
Typical IR less than 5μA above 11V.
