TA6586 - Motor Driver Circuit

Description

TA6586 is a monolithic IC designed for driving bi-directional DC motor.

It has two pins of logic inputs for controlling the direction, forward and backward.

The circuit feature good anti-interference performance, small standby current and low output saturation pressure drop.

Features

  • l Low stand-by current: ≦2uA l Wide supply voltage range 3.0V~14V l Built-in Brake Function l Thermal Shutdown protection l Over Current Limit and Short Circuit Protect Function l DIP8 Pb-Free package. Pin Function Pin NO Name 1 BI 2 FI 3 GND 4 Vcc 5, 6 FO 7, 8 BO Function Backward input Forward input Ground Vcc Forward output Backward output Input Truth Table 2pin Finput H L H L 1pin Binput L H H L Absolute Maximum Rating Parameter Maximum supply voltage Output current Opera.

📥 Download Datasheet

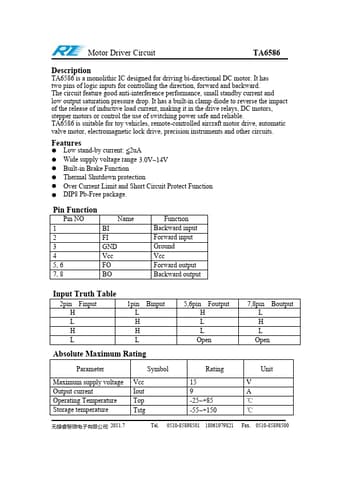

Datasheet preview – TA6586

Datasheet Details

Part number TA6586
Manufacturer Ruizhi
File Size 227.56 KB
Description Motor Driver Circuit
Datasheet download datasheet TA6586 Datasheet
Additional preview pages of the TA6586 datasheet.

📁 Similar Datasheet

  • TA65N14A10 - Advanced Pulse Power Device (Solidtron)
  • TA6009FM - Shock Sensor (Toshiba Semiconductor)
  • TA6009FN - SHOCK SENSOR (Toshiba Semiconductor)
  • TA6009FNG - SHOCK SENSOR (Toshiba Semiconductor)
  • TA6038FN - SHOCK SENSOR (Toshiba Semiconductor)
  • TA6039FN - Shock Sensor (Toshiba Semiconductor)
  • TA6042FNG - Shock sensor (Toshiba Semiconductor)
  • TA605 - Power Chip Resistor (ETC)
  • TA613A - Indoor Tap/Splitter (Dibo)
  • TA616A - Indoor Tap/Splitter (Dibo)
Other Datasheets by Ruizhi

    Full PDF Text Transcription

    Click to expand full text
    Motor Driver Circuit TA6586 Description TA6586 is a monolithic IC designed for driving bi-directional DC motor. It has two pins of logic inputs for controlling the direction, forward and backward. The circuit feature good anti-interference performance, small standby current and low output saturation pressure drop. It has a built-in clamp diode to reverse the impact of the release of inductive load current, making it in the drive relays, DC motors, stepper motors or control the use of switching power safe and reliable. TA6586 is suitable for toy vehicles, remote-controlled aircraft motor drive, automatic valve motor, electromagnetic lock drive, precision instruments and other circuits. Features l Low stand-by current: ≦2uA l Wide supply voltage range 3.
