MS9000 Single axis analog accelerometer

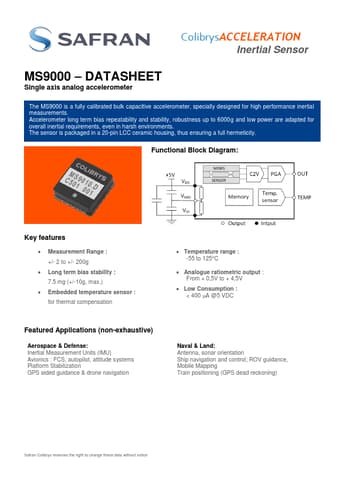

📥 Download Datasheet  Datasheet Preview Page 1

Description

ColibrysACCELERATION Inertial Sensor MS9000 * DATASHEET Single axis analog accelerometer The MS9000 is a fully calibrated bulk capacitive acce.

📥 Download Datasheet

Preview of MS9000 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MS9000
Manufacturer
SAFRAN
File Size
792.20 KB
Datasheet
MS9000-SAFRAN.pdf
Description
Single axis analog accelerometer

Features

* Measurement Range : +/- 2 to +/- 200g
* Long term bias stability : 7.5 mg (+/-10g, max. )
* Embedded temperature sensor : for thermal compensation
* Temperature range : -55 to 125°C
* Analogue ratiometric output : From + 0,5V to + 4,5V
* Low Consumption : < 400 A @5 VDC F

Applications

* (non-exhaustive) Aerospace & Defense: Inertial Measurement Units (IMU) Avionics : FCS, autopilot, attitude systems Platform Stabilization GPS aided guidance & drone navigation Naval & Land: Antenna, sonar orientation Ship navigation and control; ROV guidance, Mobile Mapping Train positioning (GPS d
