SA7110

Read Only RF Transponder

SA7110 Features

* n EEPROM flexibility of data and mode configuration n 64 bits of OTP data factory programmed and locked s Customer specific configuration of stored data s Manchester or PSK mode custom set at factory s Minimum external component count s On-chip rectifier for powering up from RF signal s On-chip data

SA7110 General Description

This device is manufactured in the SAMES 1.2µm N-well EEPROM process. It has 64bits of factory pre-programmed and locked bits in EEPROM memory. Its mode of operation is factory pre-programmed and locked in additional EEPROM. The mode of operation is either manchester coded or Phase Shift Keyed (PSK).

SA7110 Datasheet (283.54 KB)

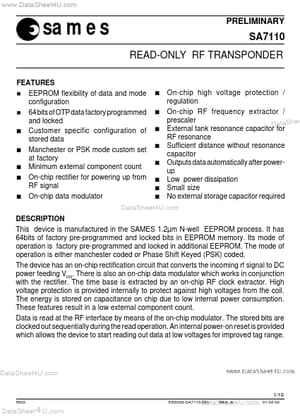

Preview of SA7110 PDF

Datasheet Details

Part number:

SA7110

Manufacturer:

SAMES

File Size:

283.54 KB

Description:

Read only rf transponder.
