KBPC101, KBPC1005 - SILICON BRIDGE RECTIFIERS

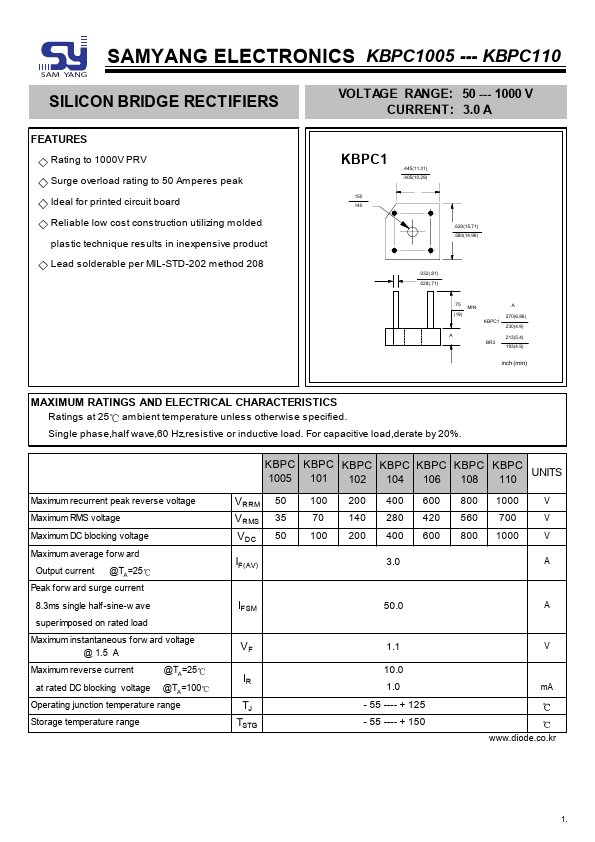

KBPC101 Description

SAMYANG ELECTRONICS KBPC1005 *- KBPC110 SAM YANG SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 *- 1000 V CURRENT: 3.0 A .

KBPC101 Features

* Rating to 1000V PRV Surge overload rating to 50 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 KBPC1 .150 .140 .445(11.31) .405(10.29) .620(15.71) .580(14.96)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC101, KBPC1005. Please refer to the document for exact specifications by model.

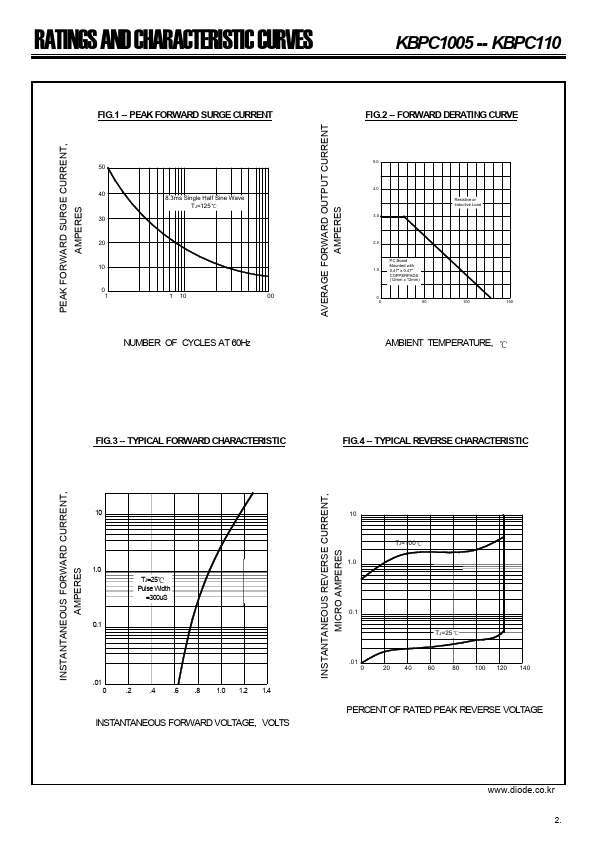

datasheet Preview Page 2

Datasheet Details

Part number
KBPC101, KBPC1005
Manufacturer
SAMYANG
File Size
410.11 KB
Datasheet
KBPC1005-SAMYANG.pdf
Description
SILICON BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: KBPC101, KBPC1005.
Please refer to the document for exact specifications by model.
