DSM501B Datasheet - SAMYOUNG

Particle / Dust Sensor Module

DSM501B Features

* Detecting dust, pollen, and particles down to 1㎛

* Customized sensitivity for efficient control depending on application.

* Excellent long term reliability and easy maintenance.

* Compact Size

* PWM Output Applications

* Air Cleaners, Air Conditioners

* Ventilation Sys

DSM501B General Description

DSM 501 series dust sensor detects fine particles as small as 1µm and measures quantity of floating particles in a room space up to maximum 30m3. The sensor generates forced inflow of the sampling air, and measures the dispersion of reflected lights by particles. This measurement is then converted t.

DSM501B Datasheet (492.53 KB)

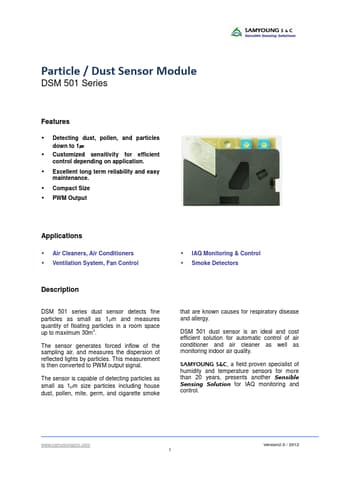

DSM501B Datasheet Preview — Preview of DSM501B PDF

Datasheet Details

Part number:

DSM501B

Manufacturer:

SAMYOUNG

File Size:

492.53 KB

Description:

Particle / dust sensor module.
