Technical Data Data Sheet N1824, Rev. -
DSS34
Green Products

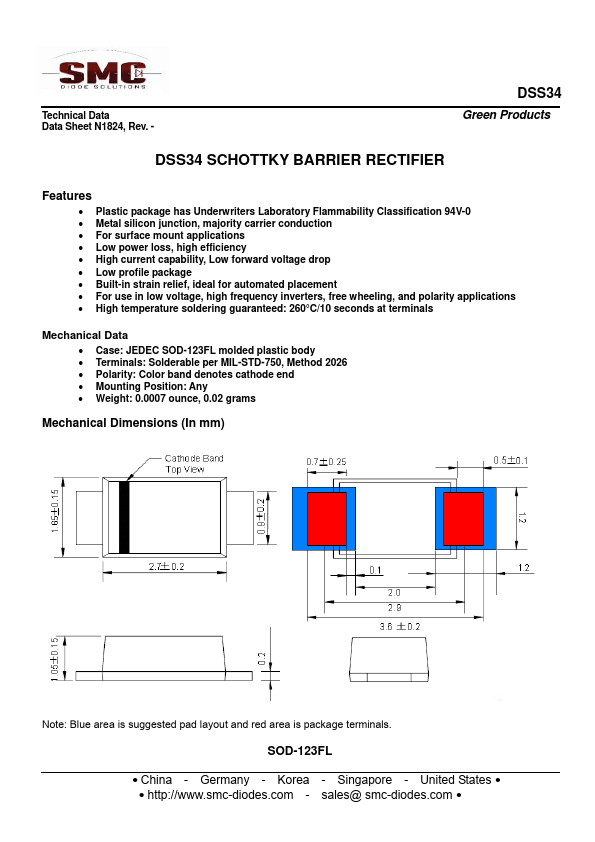

DSS34 SCHOTTKY BARRIER RECTIFIER
Features
• Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • Metal silicon junction, majority carrier conduction • For surface mount applications • Low power loss, high efficiency • High current capability, Low forward voltage drop • Low profile package • Built-in strain relief, ideal for automated placement • For use in low voltage, high frequency inverters, free wheeling, and polarity applications • High temperature soldering guaranteed: 260°C/10 seconds at terminals
Mechanical Data • Case: JEDEC SOD-123FL molded plastic body • Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity: Color band denotes cathode end • Mounting Position: Any • Weight: 0.
