NR885E, 3A 18V 350kHz Synchronous Buck Regulator

3A, 18V, 350kHz , Synchronous Buck Regulator NR885E General .
The NR885E is synchronous buck regulator ICs integrates High-side and Low-side power MOSFETs.

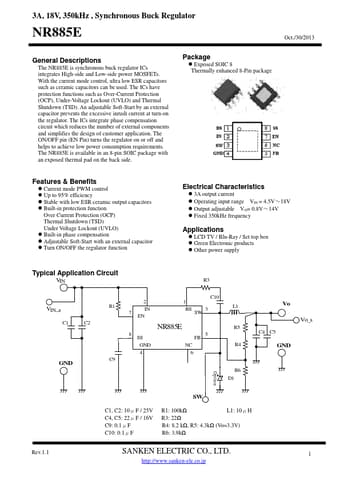

datasheet Preview Page 1 from Datasheet4u.com

NR885E-SANKEN.pdf

NR885E Datasheet Preview — Preview of NR885E PDF

Datasheet Details

Part number:

NR885E

Manufacturer:

Sanken ↗

File Size:

678.99 KB

Description:

3A 18V 350kHz Synchronous Buck Regulator

Features

* & Benefits
* Current mode PWM control
* Up to 95% efficiency
* Stable with low ESR ceramic output capacitors
* Built-in protection function Over Current Protection (OCP) Thermal Shutdown (TSD) Under Voltage Lockout (UVLO)
* Built-in phase compensation
* Adjustable Soft-Start

Applications

* LCD TV / Blu-Ray / Set top box
* Green Electronic products
* Other power supply Typical Application Circuit VIN R3 C10 SW 3 L1 VIN_s C1 C2 R1 7 2 IN EN 1 BS Vo Vo_s NR885E 8 SS GND 4 FB NC 6 5 R5 C4 C5 R4 GND GND C9 R6 D1 Option SW C1, C2: 10μF / 25V C4, C5: 22μF / 16V C9:
