STK442-090 - Function class AB 2 channels AF power amplifier

SANYO (now Panasonic)

Datasheet Details

Part number	STK442-090
Manufacturer	SANYO (now Panasonic)
File Size	135.37 KB
Description	Function class AB 2 channels AF power amplifier
Datasheet	STK442-090 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
STK442-130	AF Power Amplifier	ETC
STK441-xxx	(STK4xx) 2-Channel 5 to 25W AF Power Amp	ETC
STK4412	2-Channel AF Power Amplifier	Sanyo Semicon Device
STK443-090	Block Diagram	ETC
STK443-xxx	(STK4xx) 2-Channel 5 to 25W AF Power Amp	ETC

Other Datasheets by SANYO (now Panasonic)

Part Number	Description
STK442-110	14 Pin / Class AB 2 Channels AF Power Amplifier
STK441	20W MIN 2 CHANNEL AF POWER AMPLIFIER
STK441	Single Power Supply / 2Ch Amplifier
STK443	2 Channel 5 to 25W Min AF Power AMP
STK443	Single Power Supply / 2Ch Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

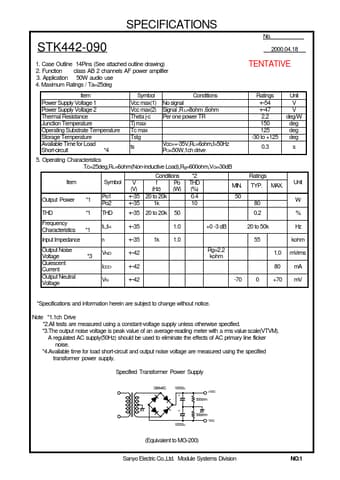

SPECIFICATIONS No. STK442-090 1. Case Outline 14Pins (See attached outline drawing) 2. Function class AB 2 channels AF power amplifier 3. Application 50W audio use 4. Maximum Ratings / Ta=25deg Item Power Supply Voltage 1 Power Supply Voltage 2 Thermal Resistance Junction Temperature Operating Substrate Temperature Storage Temperature Available Time for Load Short-circuit *4 Symbol Conditions Vcc max(1) No signal Vcc max(2) Signal ,R L=8ohm ,6ohm Theta j-c Per one power TR Tj max Tc max Tstg Vcc=+-35V,RL=6ohm,f=50Hz ts PO=50W,1ch drive 2000.04.18 TENTATIVE Ratings +-54 +-47 2.2 150 125 -30 to +125 0.3 Unit V V deg/W deg deg deg s 5. Operating Characteristics Tc=25deg,RL=6ohm(Non-inductive Load),Rg=600ohm,VG=30dB Conditions *2 Item Symbol V f Po THD MIN.
